HDT VICAT Testing Machine
Professional testing instrument for determining Vicat softening temperature of plastic materials using standard test procedures.
Equipment Overview
Vicat softening temperature refers to the temperature at which a flat-ended needle with a 1 mm² circular cross-section penetrates a thermoplastic test specimen to a depth of 1 mm under specified vertical load conditions, with testing conducted at selected uniform temperature rise rates.

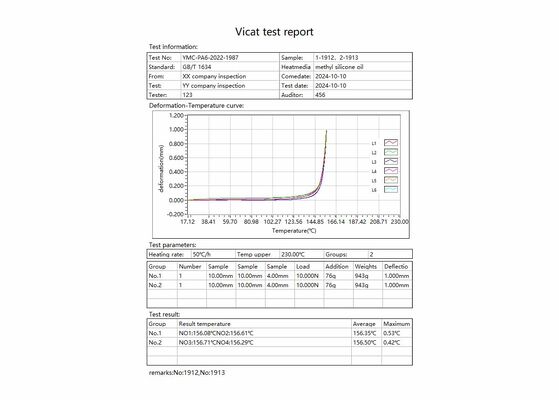

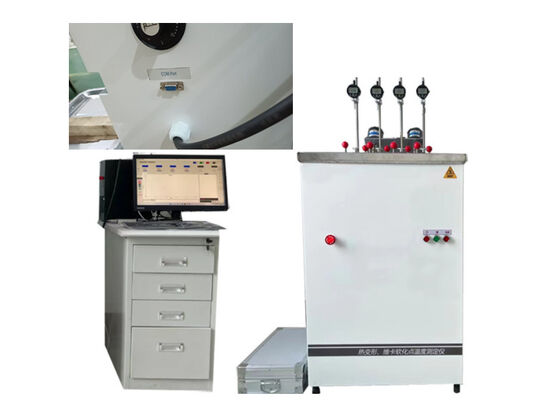

This testing machine features PC-based control with deformation measured by digital micrometers. It supports real-time curve plotting, secondary data processing directly on the PC, and test data export to OFFICE software for editing. The sample frame includes automatic lifting and lowering functionality.
Test Standards Compliance
This equipment is calibrated and validated to align with established national and international testing standards including: GB/T1633, GB/T1634, ISO75, ISO306, ASTM D648, ASTM D1525, ISO 2507 and other applicable industry specifications.
Technical Specifications
| Temperature control range |
Room temperature ～300℃ |
| Heating rate |
120±10℃/h , 50±5℃/h |
| Maximum temperature error |
±0.5℃ |
| Temperature measurement points |
4 |
| Test stations |
4 stations |
| Loading capacity |
10±0.2N, 50±1.0N |
| Test frame lifting mode |
Automatic rising-lowering |
| Deformation measurement range |
-1.00～10.00mm |
| Span of sample support |
100mm, 64mm |
| Maximum deformation measurement error |
0.001mm |
| Thermal expansion coefficient |
<0.005mm/100℃ |
| Heating medium |
Silicone oils, glycerine, ethylene glycol, mineral oil |
| Cooling method |
＞150℃ Natural cooling, ≤150℃ water cooling or natural cooling |
| Temperature protection |
Automatic heating stop at upper temperature limit |
| Equipment dimensions |
900mm×580mm×1400mm |
| Power requirements |
4.5KW, 220VAC, 50HZ |
After-Sales Support & Services
We deliver comprehensive technical support and after-sales services designed to guarantee optimal equipment performance and maximum operational uptime.
- On-Site Installation & Deployment: Technical specialists complete installation and provide hands-on operational training
- Periodic Preventive Maintenance: Scheduled maintenance services to ensure consistent peak performance
- Prompt Troubleshooting Guidance: Quick identification and resolution of operational issues
Packaging and Shipping
The HDT VICAT Testing Machine is packaged in industrial-grade solid wooden crates with interior bubble wrap and foam padding to ensure safety during transit. Equipment is wrapped with moisture-proof plastic film and shipped via reliable carriers including UPS and FedEx.
Frequently Asked Questions
Could you give a general introduction to the HDT VICAT Testing Machine?
The HDT VICAT Testing Machine (model XRW-300) is a professional material testing instrument manufactured by JHH in Beijing, China, specifically designed to test the Vicat softening temperature of thermosetting plastic materials.
What core strengths does the HDT VICAT Testing Machine offer?
The machine delivers highly precise measurement results with straightforward operation workflows, user-friendly interface, and minimal routine maintenance requirements.
What are the main technical specifications?
Microcomputer-controlled operation with temperature precision of ±0.5°C, temperature range from room temperature to 300°C, and selectable heating rates of 120°C/h or 50°C/h.
What material types are applicable for testing?
Suitable for various thermosetting plastics including polyester, epoxy, unsaturated polyester, phenolic and polyurethane materials.
How long is the standard warranty?
JHH offers a standard 12-month warranty for all HDT VICAT Testing Machine units.
