High-Performance Electronic Universal Testing Machine for Accurate Tensile and Peeling Strength Results

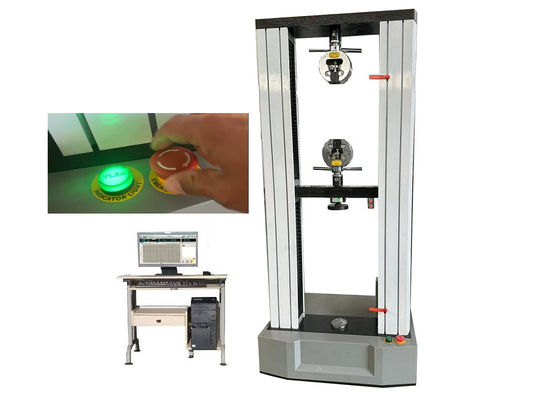

Universal Testing Machine (Electronic Tensile & Peel Strength Tester)
The Universal Testing Machine (Electronic Tensile & Peel Strength Tester) is widely applicable to a diverse range of materials, including hardware, metals, sealants, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, and terminals. It is engineered to conduct various physical performance tests such as tensile strength, tear strength, peel strength, compression, bending, shear, and three-point bending tests, among others.
Features
- Computer and software enable control and real-time display of 6 types of test curves: force-displacement, force-deformation, stress-displacement, stress-deformation, force-time, and displacement-time.
- Supports the installation of an extensometer to measure deformation of rubber or metal materials.
- Facilitates high-temperature testing via a high-temperature oven or furnace.
- Accommodates various test fixtures, including manual, hydraulic, and pneumatic fixtures.
- Offers customization options for height and width, with compliance to any test standard or specific customer requirements.
- Additionally, an ETM Digital Display Type is available.
Safety Features
- Overload protection and emergency stop mechanisms.
- Upper and lower travel limit safeguards.
- Automatic shutdown function upon test completion.
Meet Standards
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882, ASTM, D1938, ASTM D 412 , ISO 8339, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T 2358, QB/T 1130, ISO 527 , ISO 178 and other standards.
Software Function
- Adopting multi-threaded parallel processing technology, the testing process enables real-time simultaneous display of force-displacement, force-time, displacement-time, and stress-strain curves. It allows for easy on-screen switching between curves for viewing, and also supports access to test-related user settings.
- It features flexible yet robust test method customization capabilities, with built-in control modes including constant speed control, position displacement control, constant force control, constant force rate control, constant stress control, constant stress rate control, constant strain control, and constant strain rate control. This enables complex multi-step nested loop control. Additionally, it can be configured with automatic return, automatic fracture judgment, and automatic zero-setting functions.
- Standardized test process control and report output templates are provided, allowing users to define and store multiple test standards for quick retrieval. These templates cover nearly all mainstream test standards, such as GB, ASTM, DIN, JIS, and BS.
- By integrating different fixtures and accessories, the machine supports testing for various products and materials to evaluate over 400 test items, including maximum force, breaking strength, peel strength, tensile strength, shear strength, tear strength, maximum deformation, yield strength, elongation, modulus of elasticity, ring stiffness, non-proportional elongation, interval minimum force, interval average force, force at constant elongation, and elongation at constant force.
Main Technical Parameters
| Model | XWW-200N/500N/5KN/10KN/30KN/50KN |
| Type | Double column model |
| Accuracy Grade | Class 1 (Class 0.5 optional) |
| Force-measuring Range | 1%~100%FS(0.4%~100%FS optional) |
| Deformation-measuring Range | 2%~100%FS |
| Deformation-measuring Accuracy | ±1% |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.05~500mm/min |
| Displacement Speed Accuracy | ≤ ±0.5% |
| Metal Extensometer Accuracy Grade | ±0.5% |
| Test width | 380(can up to 1200)mm |
| Tensile Space | 700mm |
| Compression Space | 1000mm |

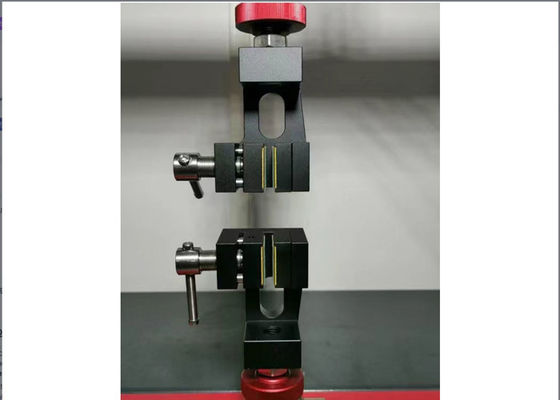

| Clamps | Tensile, compression, bending, peel, fixture |
| PC System | Equiped with brand computer |
| Power Supply | AC 220V±10%, 50Hz (can be customized as customer request) |
| Size of the host | 700*400*2000mm |
| Packing size & Weight | 800*500*2100mm,about 350kg |
FAQ
Q1: What is an Electronic Universal Testing Machine?
A1: An Electronic Universal Testing Machine is a high-precision testing instrument engineered to assess the mechanical properties of materials, including tensile strength, compressive strength, modulus of elasticity, and elongation.
Q2: What materials can be tested with an Electronic Universal Testing Machine?
A2: An Electronic Universal Testing Machine accommodates testing of a broad spectrum of materials, encompassing metals, plastics, elastomers, and composites.
Q3: How accurate are Electronic Universal Testing Machines?
A3: Electronic Universal Testing Machines boast high measurement precision, with a measurement deviation within ±0.5% of the actual value.
Q4: What types of tests can be performed with an Electronic Universal Testing Machine?
A4: An Electronic Universal Testing Machine supports a comprehensive array of test modalities, including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
Q5: What are the benefits of using an Electronic Universal Testing Machine?
A5: The Electronic Universal Testing Machine delivers cost efficiency and high precision in evaluating material mechanical properties. It also features intuitive operation and generates rapid test outcomes, thereby optimizing efficiency in material testing workflows.
